fecoair

Wall-integrated air-passage elements.

In sustainably-planned office and administration buildings, the use of component-activated concrete ceilings means that no suspended ceiling is available for the ventilation ducting. Wall-integrated fecoair overflow elements enable air exchange between the room and corridor.

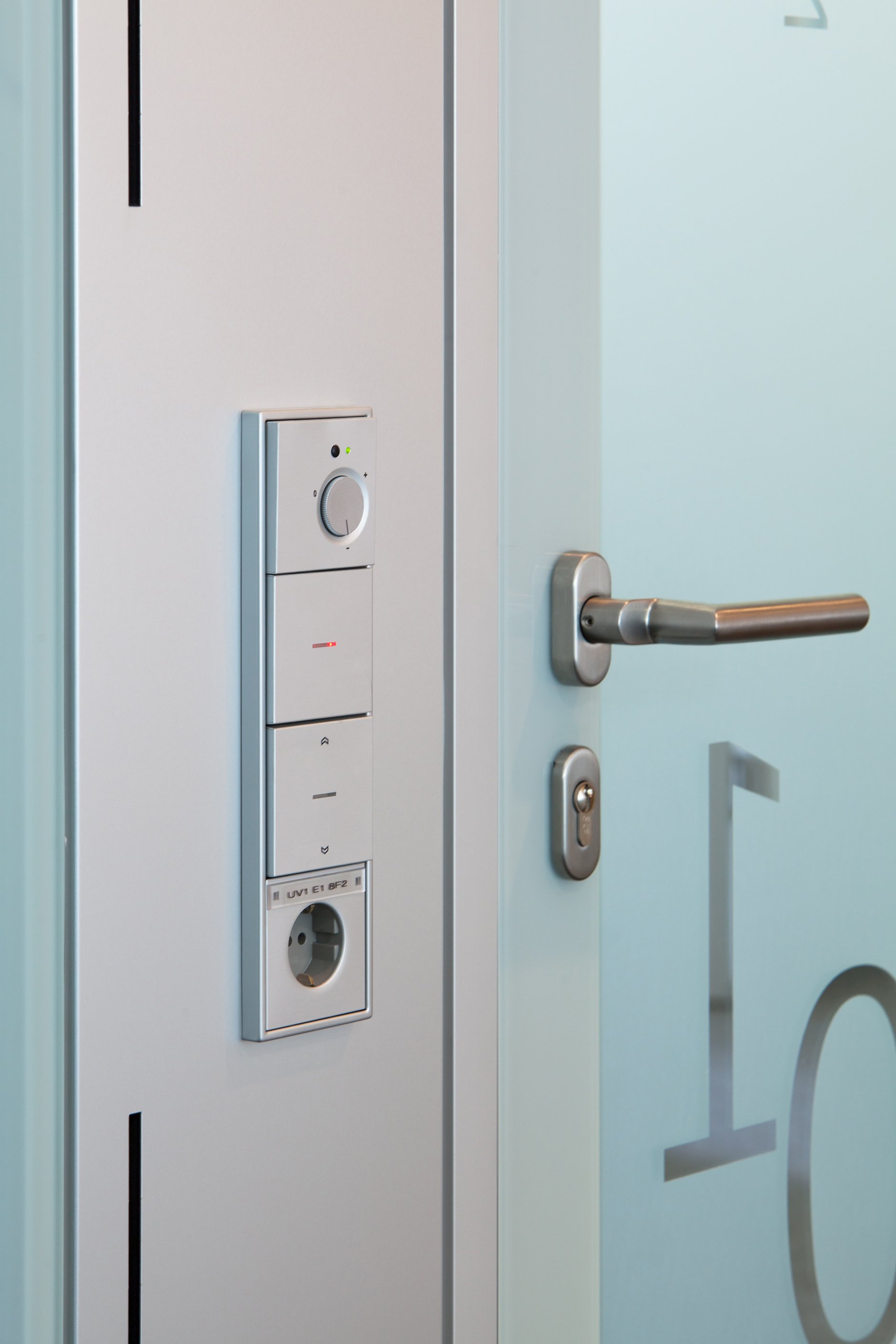

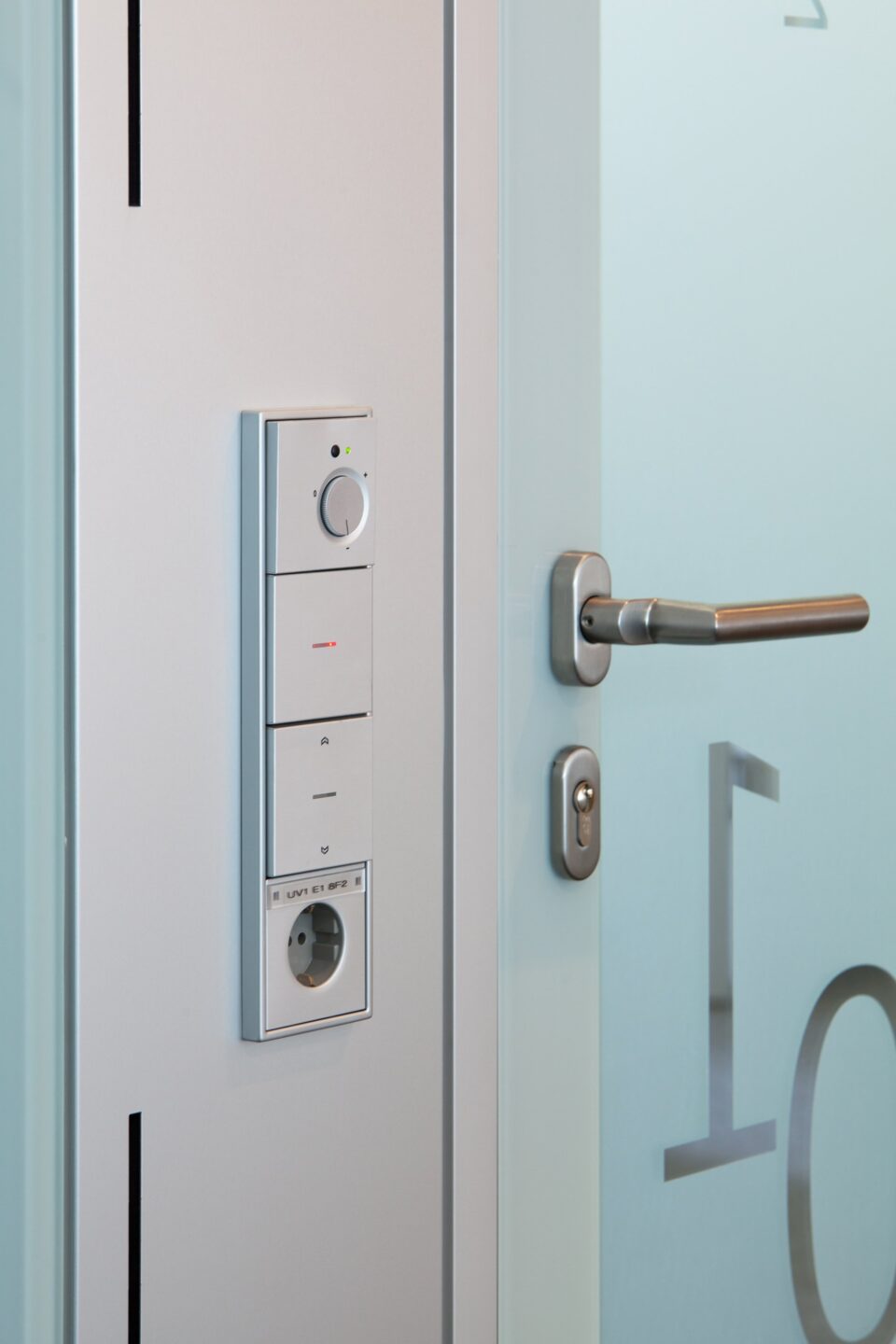

The overflow elements are manufactured in different widths and heights and installed in fecowand 105mm-thick solid-wall elements, thereby enabling the integration of switches and sockets. Horizontal installation, for example in a door top-panel, is also possible.

Building-specific element-width and element-height, installation vertical or horizontal

Melamine resin direct-coating as per collection, optional CPL/HPL coating materials, real wood veneers, paint finishing, fabric covering, steel cases powder-coated in RAL colours or aluminium cases natural E6/EV1 anodized

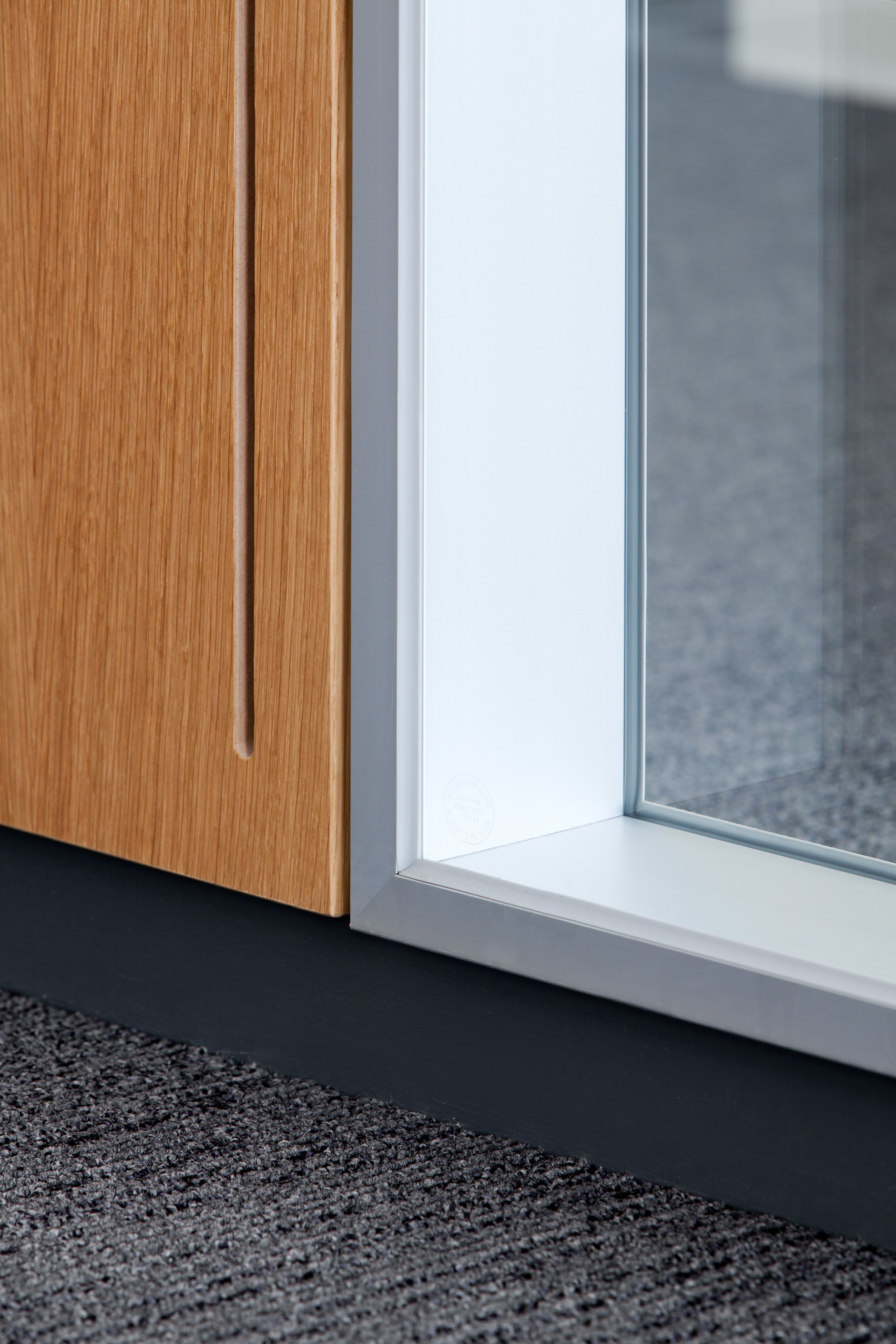

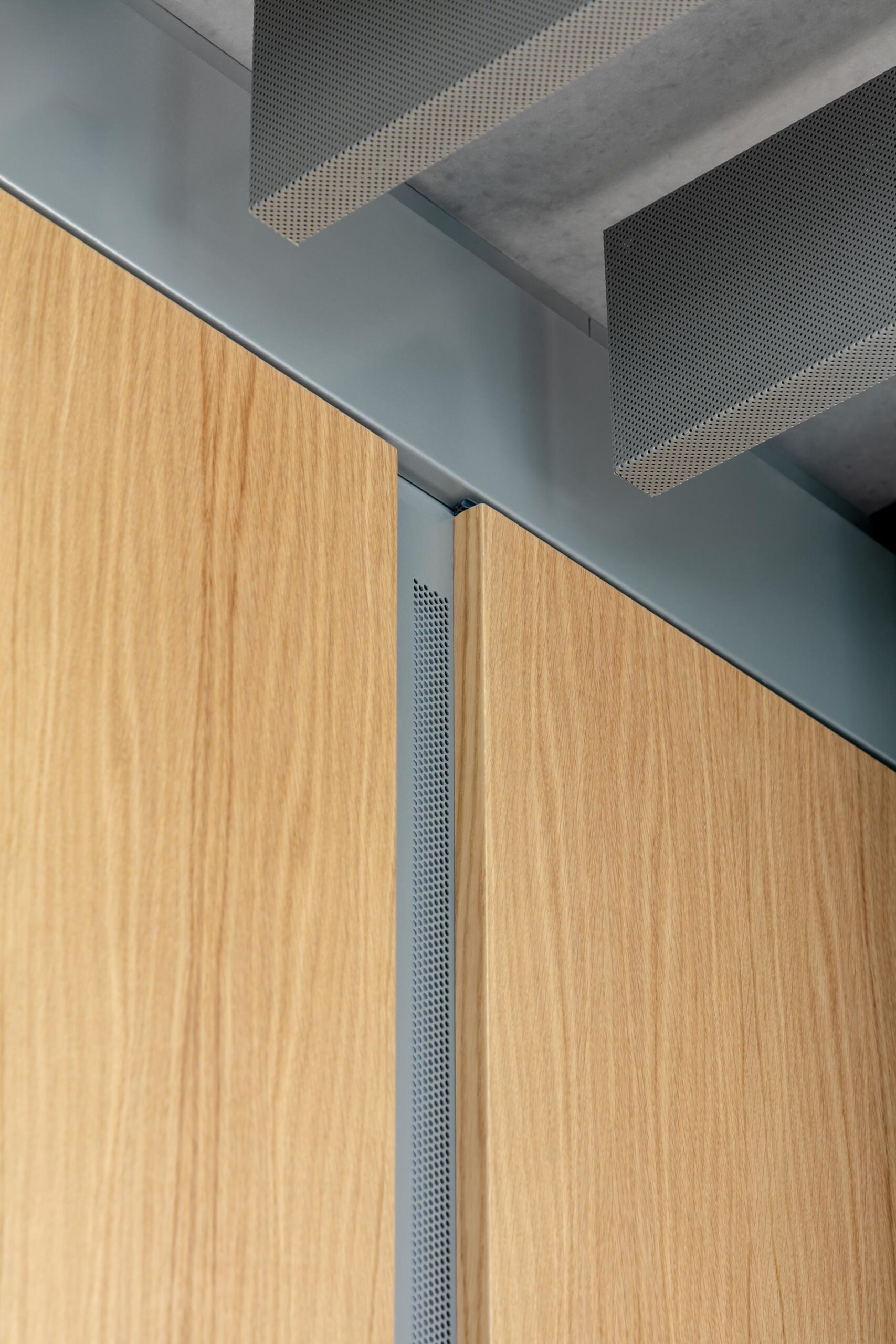

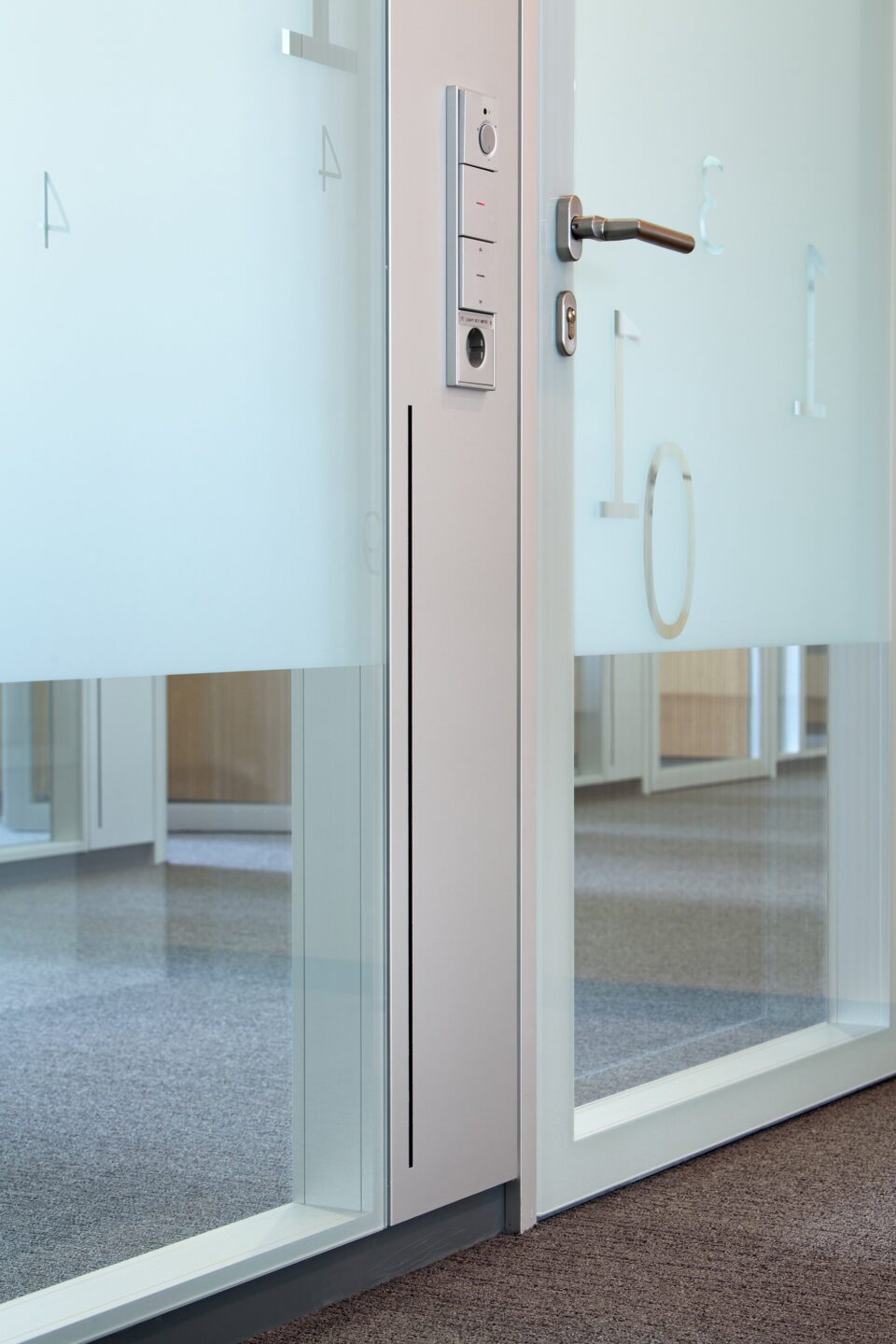

Front-side slotting, joint width 8 – 15 mm; optional hole perforation with metal cases

Air-passage element with meandering airflow and oppositely arranged air inlets and outlets

Depending on the design, sound insulation and effective length approx. 65-130 m³/hm per linear meter effective length at approx. 10-20 Pa pressure loss

Standard-sound-level difference Dn,e,w = 37-50 dB. Sound-insulation test value (surface-dependent) R_w,P = 26-45 dB
