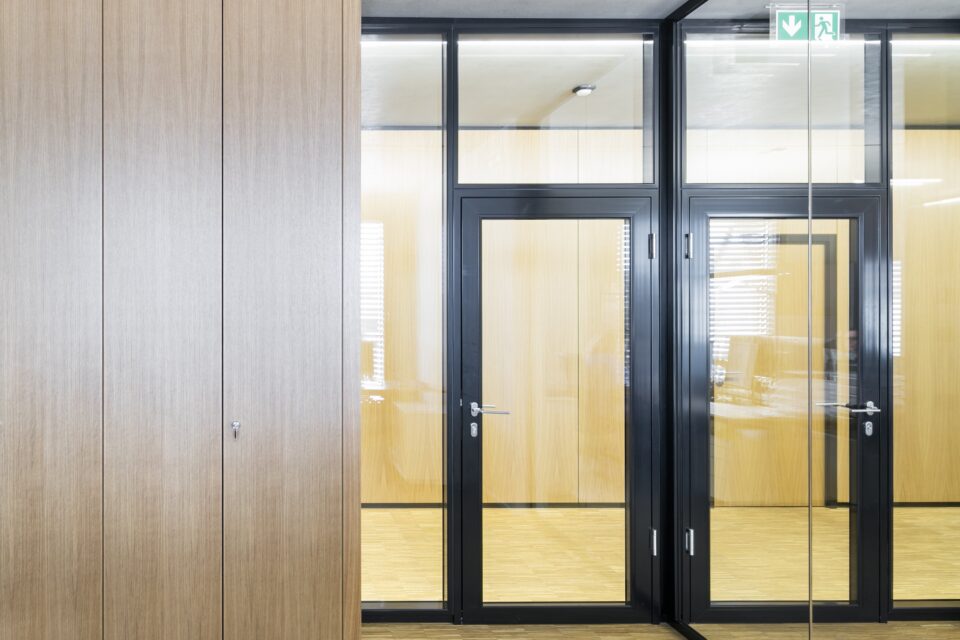

fecodoor glass

System door elements for feco system partition walls

Glass door elements G10, A40, A70, A85, S70, S85 or S105

Glass sliding-door elements ST10 or ST10B

Versions door-high or ceiling-high

Steel or aluminium frames with glass door leaves

Frame thickness 105 mm, flush-mounted with solid wall and glass elements (fecoplan 70 mm)

With steel frames – welded and sanded mitre corners, with aluminium frames – connected with form-fit or force-locking 3D clamping angles

Three-dimensional adjustable hinge base

Welded door seals in the mitre corners

Object-specific door fittings in aluminium or stainless steel

Sound absorption test certificates for complete, accessible door elements

Framed door leaves with supporting frames of extruded aluminium profiles and frontally flush-recessed fittings

Structural glazing door leaf S105 with real oak veneer on the profiles in the space between glass panes

Sound-insulation test values R_w,P = 17 dB to 42 dB
