Town Hall Leingarten

Maximum transparency with high sound insulation

The municipality of Leingarten, located in the Heilbronn district, commissioned planning office Pool 2 Architekten (since 2014 Pape + Pape) from Kassel with the construction of its new town hall. As the old contaminated building from the 1970s had already been demolished, the inner-city situation could be redefined. The new four-storey building with its perforated limestone facade therefore blends harmoniously into the centre. In order to demonstrate transparency to local citizens, the town hall opens up to the market square with a three-storey glass facade. Behind it there are public rooms such as the citizens' centre, meeting room, wedding room and the mayor's office.

Builder: Municipality of Leingarten
Occupant: Town Hall Leingarten
Planning: Pape + Pape Architekten, Kassel
Completion: 2011
City: Leingarten
Sector: Public buildings
Partition walls: fecofix, fecodoor wood, fecowall
Photos: Nikolay Kazakov
Brands: feco

Town Hall Leingarten │ fecofix partition wall system │ fecotür wood

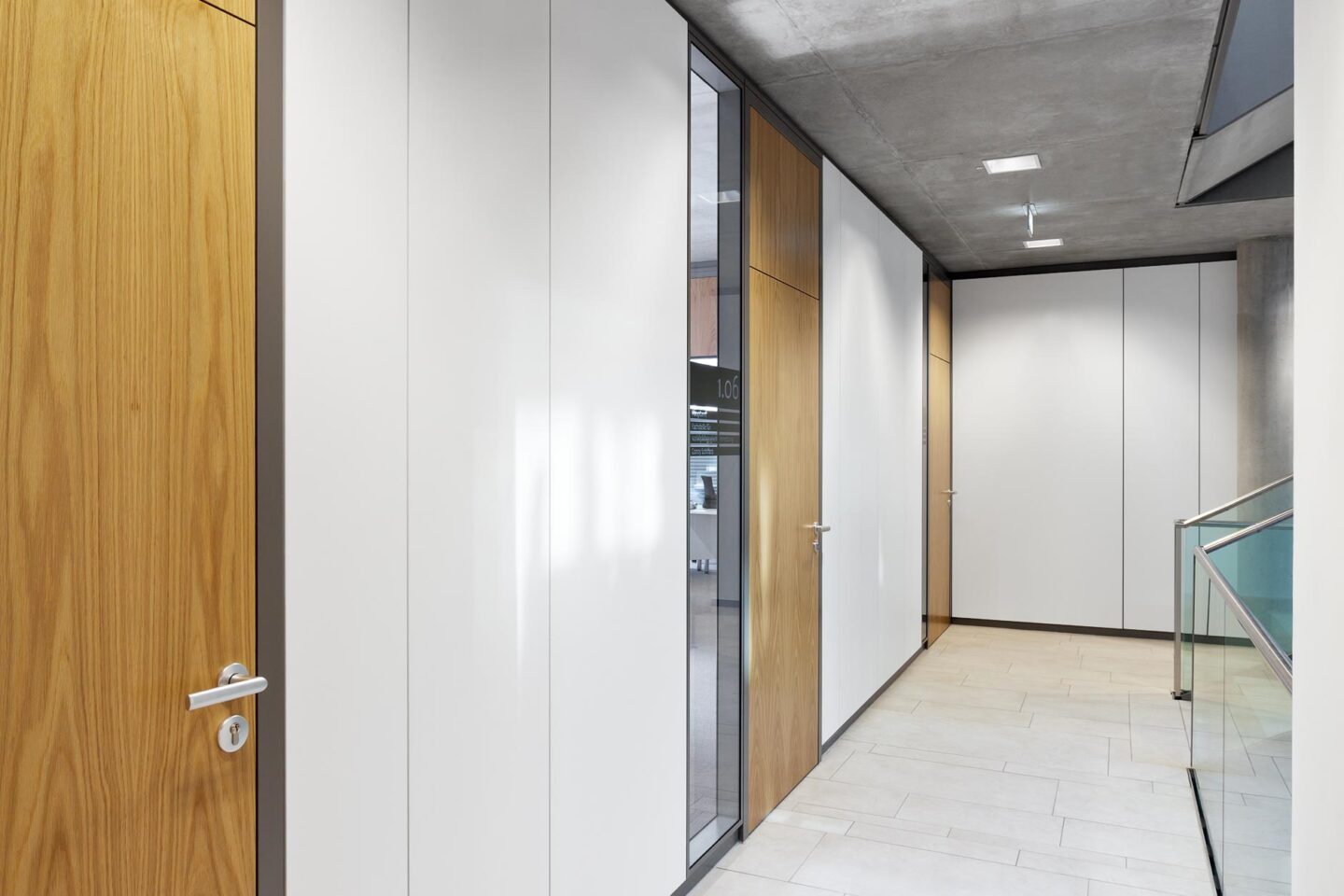

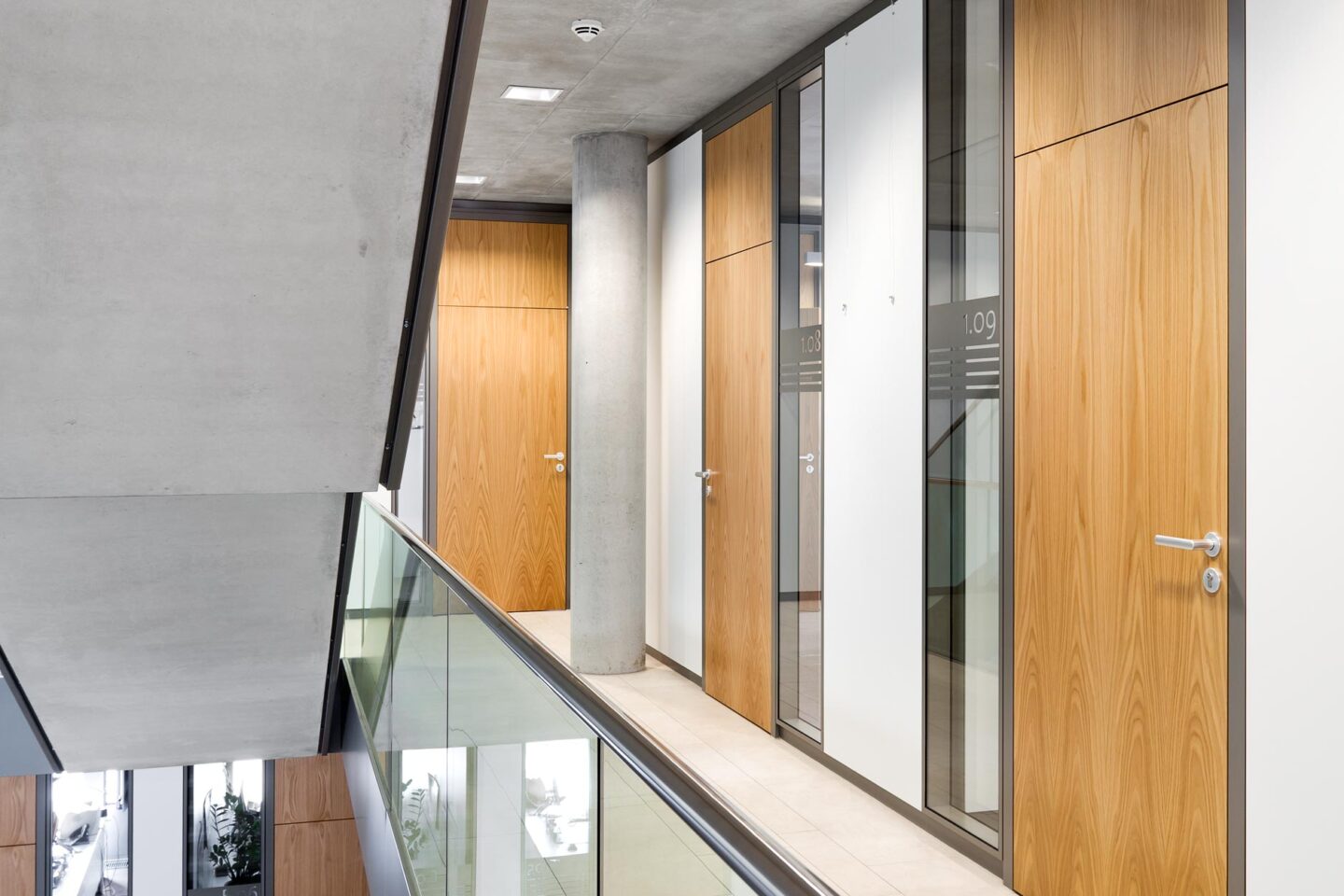

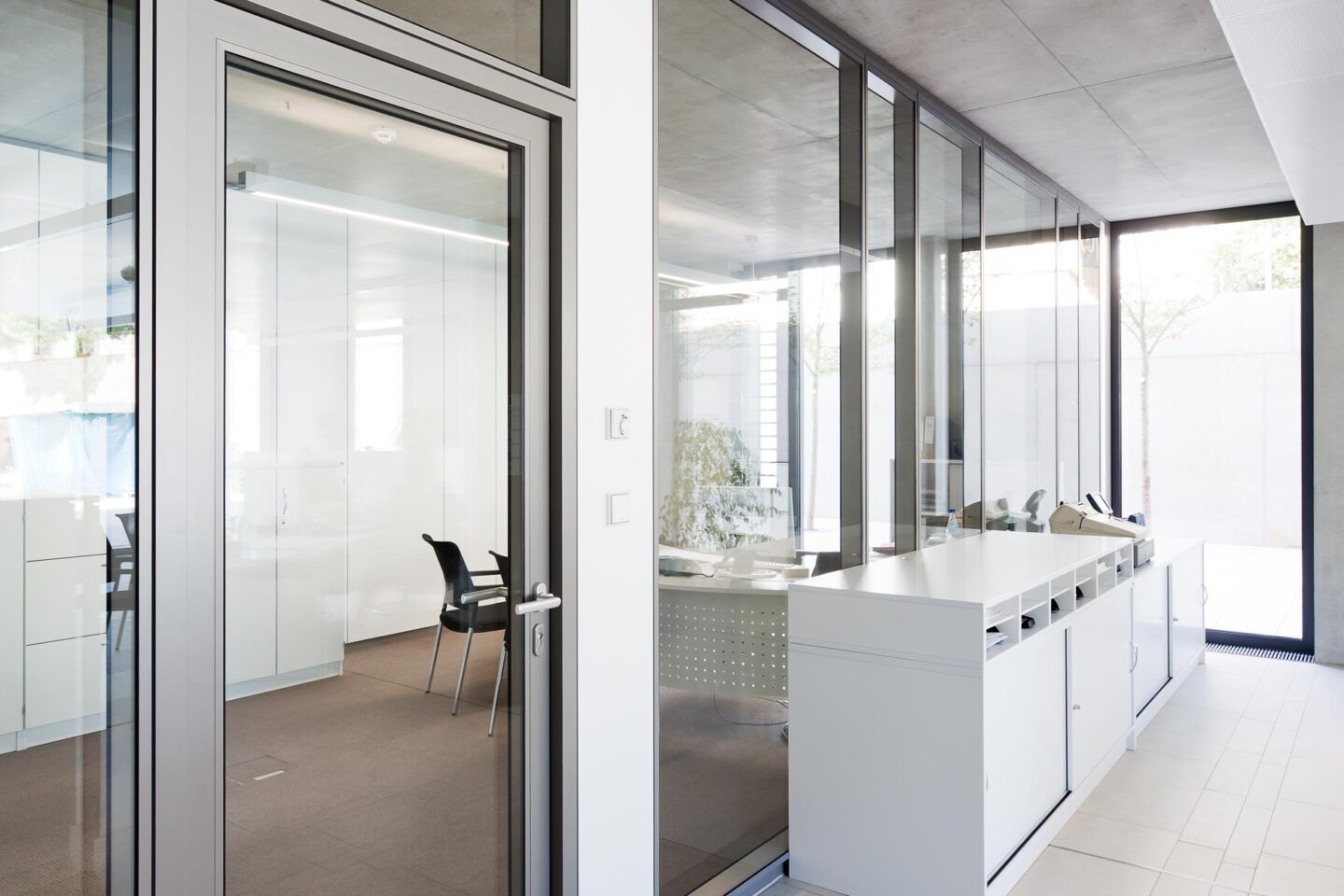

feco supplied the system partition walls for the cubic structure. In order to achieve maximum transparency with high sound insulation, the fecofix partition wall system was chosen as room-high, flush-mounted double glazing with a sound insulation test value of R _w,p = 47 dB. Discreet, 20-mm-thin aluminium profiles give the rooms the right frame. The solid wall with a melamine resin direct coating in premium white is also used on the upper three floors as a corridor and office partition wall with 47 dB and with increased requirements 52 dB R_w,p . The H60 wooden door elements veneered with American oak add a warm touch to the white solid wall. The doors with a sound insulation test value of R_w,p = 40 dB are flush-mounted on the corridor side with a 18/50 mm anthracite-grey frame mirror and integrated door-leaf top panel.

The striking three-storey glass facade towards the square makes the interior visible to the public. This means the design requirements are very high, but feco-feederle easily meets them with the high-quality workmanship of its feco system partition walls.
