January 2021 | Karlsruhe

Aluminium frame glass door element A85

Karlsruhe, January 2021. At BAU Online 2021, the feco Group will present an aluminium frame door flush on the corridor side with a sound insulation test value of R w,P = 42 dB. The 85-mm-thick door leaf is rebated on the hinge side and flush with the door frame on the opposite side. The frame can be concealed on the corridor side.

The door leaf frame made of extruded aluminium profiles is mitred at all four corners and connected with 3D press angles. 120-mm-high, 3D-adjustable commercial triple-roll hinges with angular hinge straps and the tubular frame mortise lock with a whisper trap are flush with the system groove on the front. The use of commercially-available cranked tubular frame object handles is possible in aluminium and stainless steel. The frame face width of the door leaf is 75/105 mm. The double glazing allows for the optional use of 25-mm-wide horizontal slats. These can be mounted axially in the centre of the inter-pane space. The interior blinds can be operated either with a rotary knob or electrically with a concealed cable transition.

The door element fulfils the sound insulation recommendations for rooms used for concentrated mental activities and confidential discussions according to DIN 4109, Supplement 2 whilst having the same appearance as the fecotür A70 on the corridor side. It thus supplements the feco partition wall system with a helpful tool for creating sustainable office work environments.

See www.feco.de.

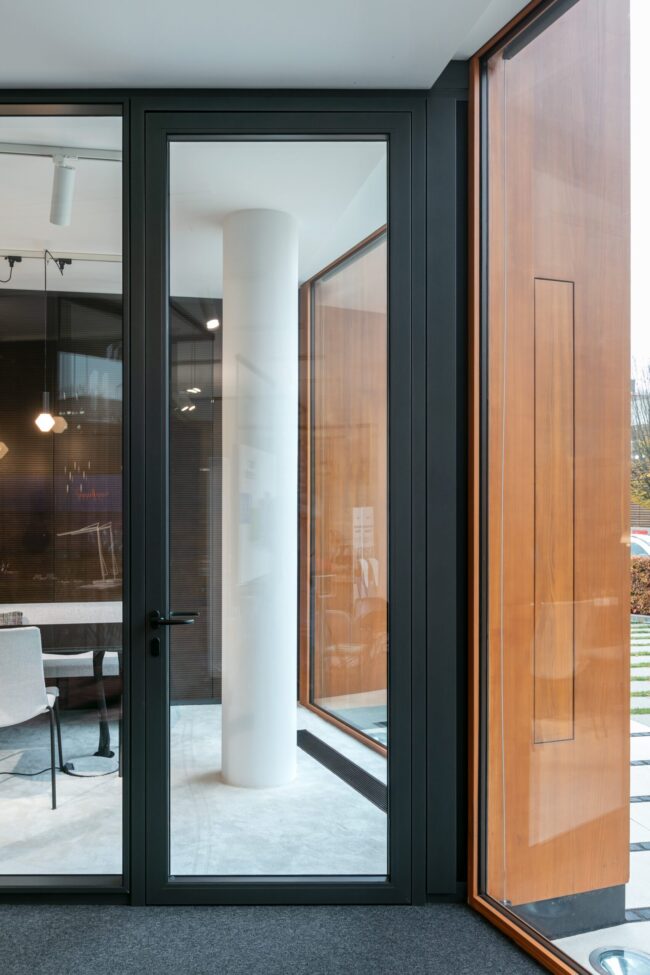

fecotür A85 – sound insulation for concentrated work.

Download JPG (NK_20_3960)


Photographer: Nikolay Kazakov, Karlsruhe
nikolay@kazakov.de, www.kazakov.de

The photographer, Nikolay Kazakov, is to be named directly beneath the image or at another suitable location. All rights of use are held.

Reproduction free of charge / copy requested
